Technical Parameters

Product Model	SDS4025
Signal Input Channels	2
Real-time Sampling Rate	2.5GSa/s per channel
Vertical Resolution	10bit
Maximum Input Voltage	5Vpp@50Ω，42Vpp@1MΩ
Onboard Memory	2GB
Bandwidth (-3dB)	500MHz@50Ω，300MHz@1MΩ
Rise Time	750ps@50Ω，1.4ns@1MΩ
Range	50Ω：50mVpp~5Vpp；1MΩ：50mVpp~42Vpp
DC Gain Accuracy	≤±[2% × \|reading - offset\| + 1.4% × \|offset\| + 0.6% full scale) + 600 μV] (calibration temperature ±3°C)
Input Impedance	1MΩ±0.75%\|\|15pF±2.5 pF，50Ω±1.5%
Coupling Mode	DC/AC
Channel Isolation	50Ω： -60dB@（DC~100MHz），-45dB@（100MHz~500MHz） 1MΩ（0.05V~10V full scale）：-55dB@（DC~100MHz），-45dB@（100MHz~300MHz）
Connector	BNC
Trigger Source	CH0, CH1, external trigger, software
Trigger Type	Edge, Pulse Width
Trigger Holdoff	0～10s
Time Measurement Resolution	4ps
Trigger Accuracy	6%FS≤10MHz
Trigger Source	CH0, CH1, external trigger
Bus Connection	PXIe
Structural Form	3U，PXIe single slot
Width × Height × Depth	20 mm × 131 mm × 214mm
Weight	≤800g
Maximum Power Consumption	≤40W
Environmental Adaptability	Operating temperature: 10~40°C; Operating relative humidity: ≤60% RH; Storage temperature: -30~50° C; Storage relative humidity: ≤60% RH; Altitude: 2 km

Software Interface

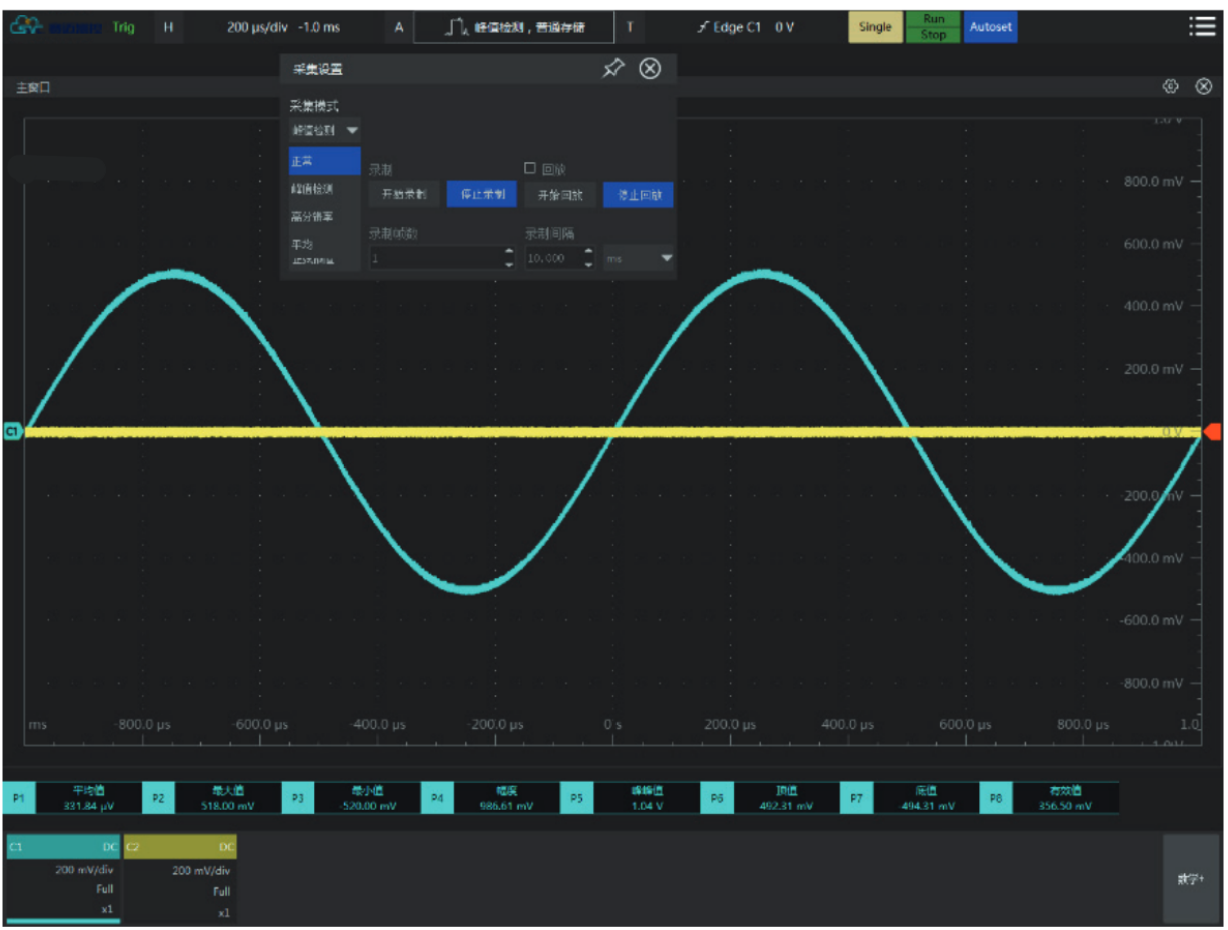

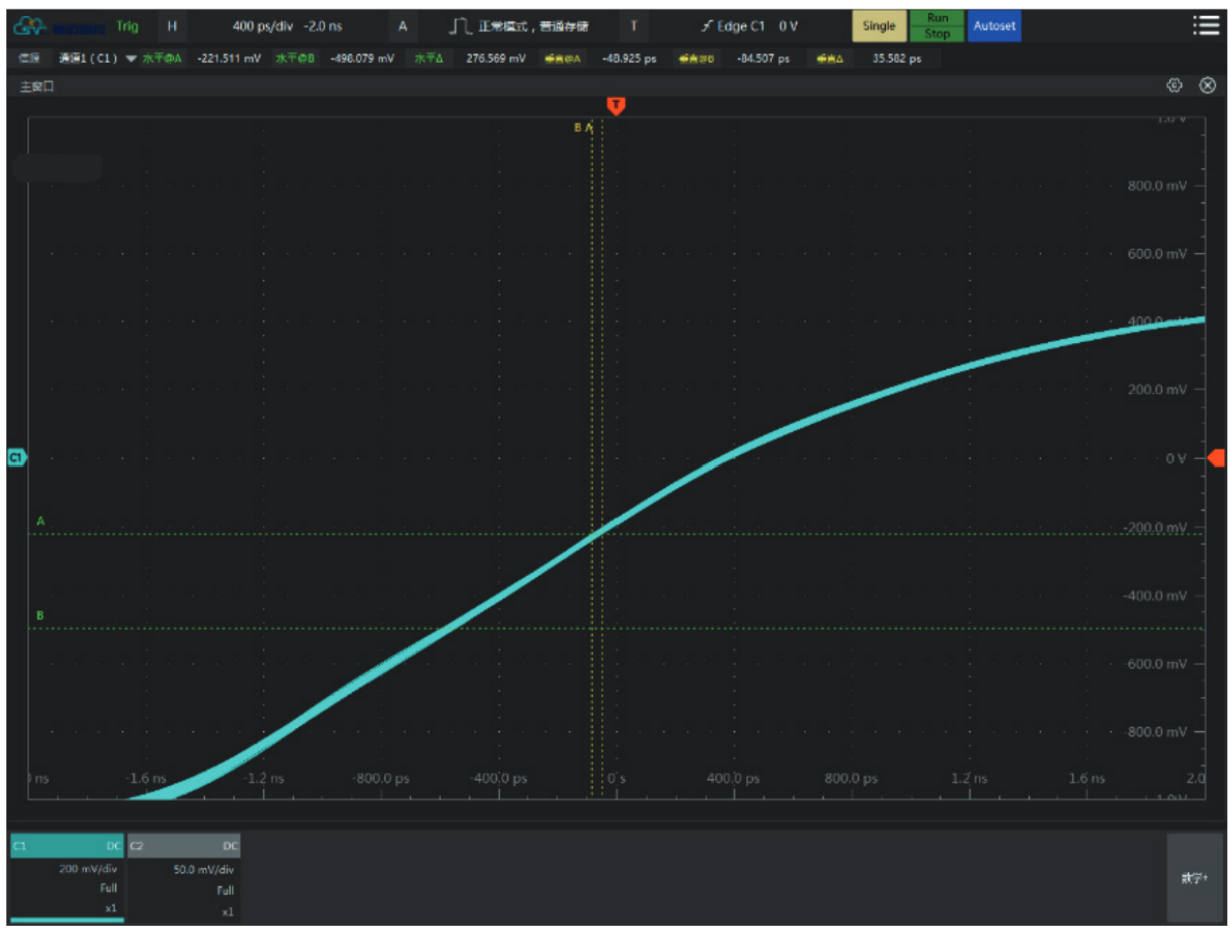

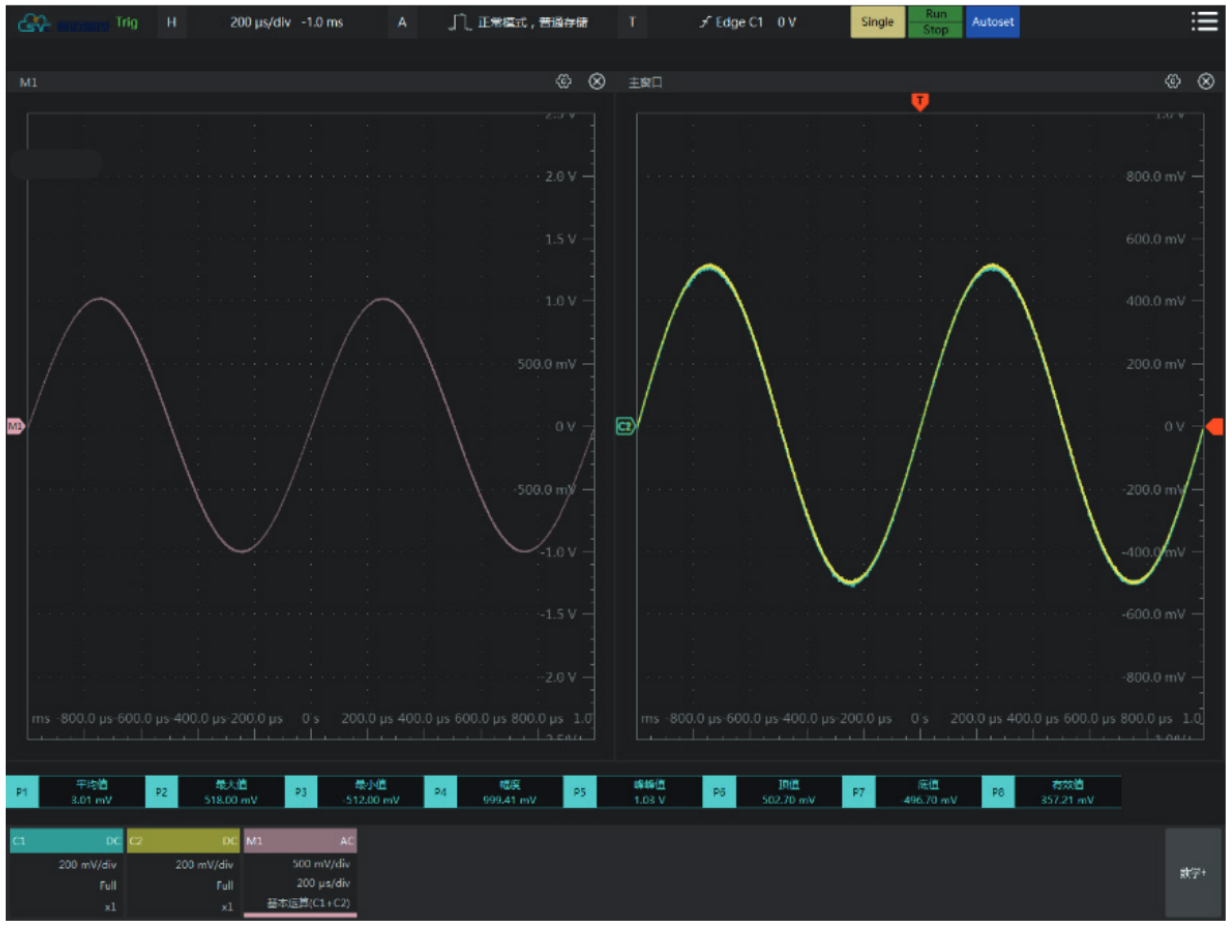

The accompanying oscilloscope software provides functions for data acquisition, capture, display, and measurement. It offers standard IVI driver functions, supporting secondary development applications.
