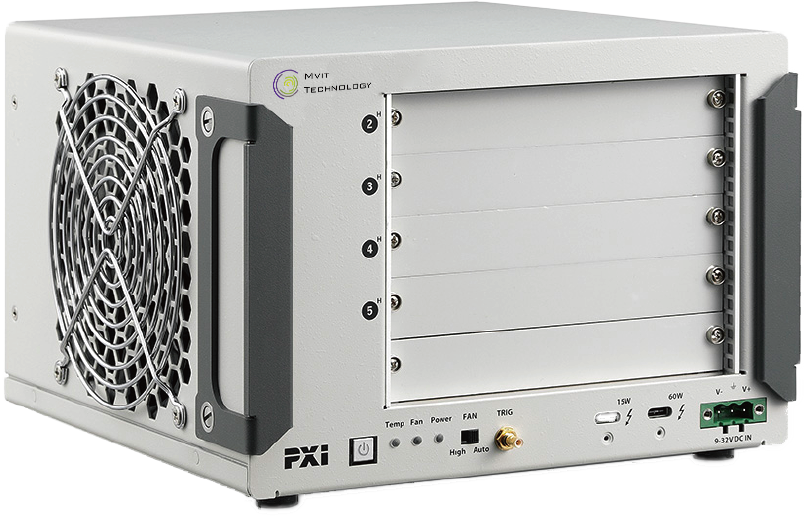

High-Performance PXIe Chassis
PXC1192T
RF Switch
SSM3608
Chassis
PXC1080
Chassis
PXC1180
Data Storage Module
SDA Serie
Digital Multi-Meter
DMM4365
Oscilloscope / Digitizer
SDS4025
Source Measure Unit
SMU Series

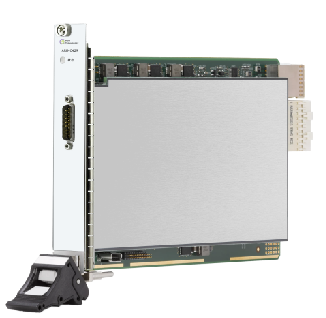

Bus Transceiver Module
ARINC429

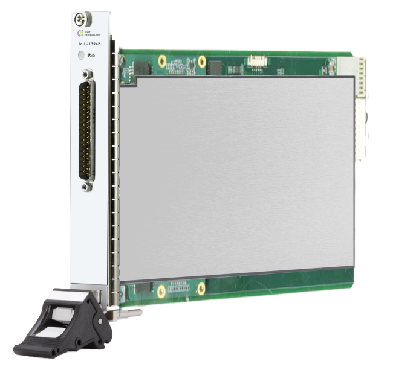

Bus Communication Card
MIL-1394B

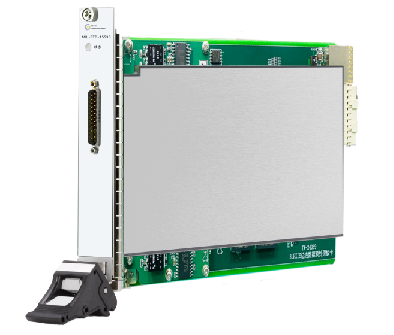

Bus Communication Card
MIL-STD-1553B
Chassis
PXC1191
Controller
PXC2080
Controller
PXC2190
9kHz - 6GHz Series
2 - 26.5GHz Series
6 - 18GHz Series
18 - 40GHz Series
40GHz and above series
Optional Pulse Power Amplifier
Power Amplifier Module
EMC200V/m Series Amplifier

RF Signal Generator

RSG3745

The RSG3745 Analog Signal Generator is a high-performance RF signal source specifically designed for demanding R&D and production testing environments. With a wide frequency range spanning from 9kHz to 45GHz, it delivers exceptional output power, low phase noise, and fine frequency resolution down to 0.01Hz. The instrument features comprehensive analog modulation capabilities including AM, FM, and pulse modulation, supporting modulation depths up to 90% and a high on/off ratio exceeding 70dB. Built on a flexible PXIe modular platform, the RSG3745 is ideal for integration into automated test systems, offering both scalability and reliability for advanced RF testing needs.

Product Specification

Product Model RSG3745
Key Parameters
Output Channels 1
Frequency Range (MHz) 9K-45G
Frequency Step (Hz) 0.01
Max RF Output Power (dBm) 10
Min RF Output Power (dBm) -100
Power Step (dB) 0.01
Power Accuracy (dB) ≤±1 (with ALC on)
External Ref Input Freq (MHz) 10 (sync capable)
External Ref Input Power (dBm) 0-5
Reference Output Freq (MHz) 10/100
Reference Output Power (dBm) 0-5
Harmonic Distortion (dBc) 5±1dBm
Spurious Signals (dBc)  ≤-30 (at 0dBm output)
SSB Phase Noise (dBc/Hz @10k) ≤-60 (at 0dBm output)
Power Supply 220V（50W）
Operating Temp (°C) -10～+45
Storage Temp (°C) -40～+70



Modulation
Amplitude Modulation (AM)
Modulation Depth 0%-90%
Modulation Frequency Response 10Hz-20KHz
Frequency Modulation (FM)
Maximum Frequency Deviation NX32MHz（nominal）
Modulation Frequency Response 10Hz-200KHz
Pulse Modulation (PM)
On/Off Ratio ≥70dB
Pulse Width 100nS-50S
Pulse Period 100nS-50S



Interfaces
RF Output 2.92，50Ω
Reference Input/Output SMA-K
FM/AM Input Interrace SMA-K
Program Control PXIe
